90° plug for POSTCODE card from P6T6 WS Revo

Posted 06-11-2009 at 13:26 by stummerwinter

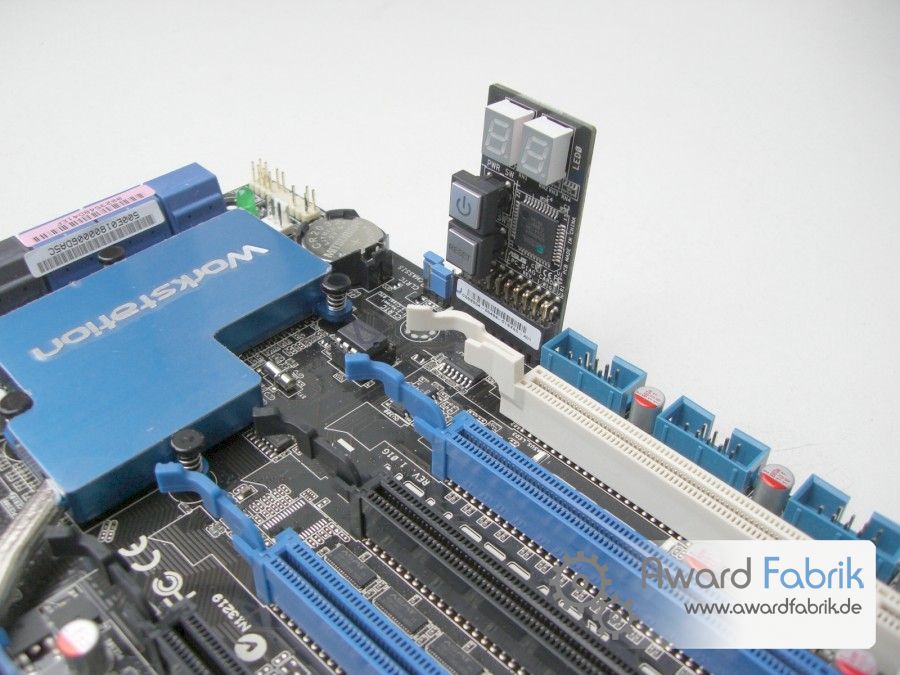

I really like this little card from my P6T6, but can't be used for SLI...

Can understand, why ASUS used this direction (mainbord in case), but for benching it's NO GOOD!

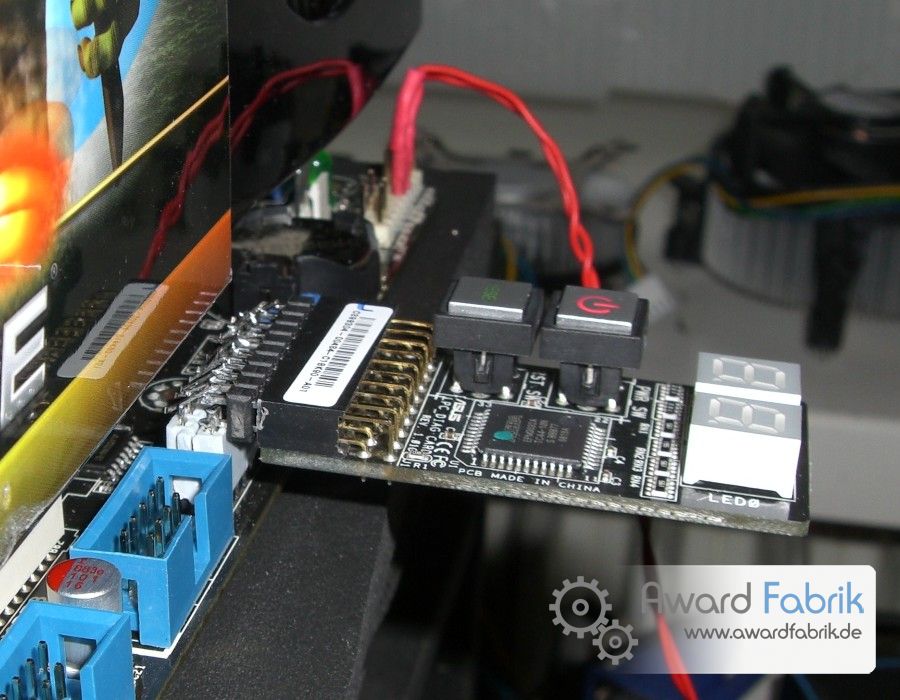

So I solderd a little plug:

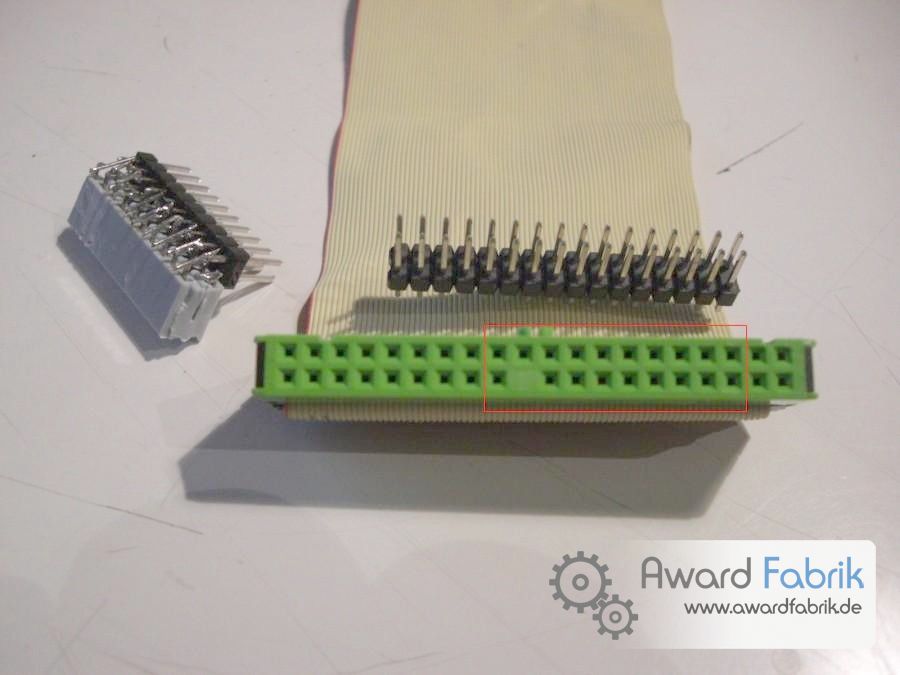

I used an old IDE-plug, just cut out the part I need (red rectangle):

A wire is also possible instead...

Comments 6

Total Comments 6

Comments

	Sweet mod! definitely HWBot material !
	Posted 06-11-2009 at 14:10 by jmke

	Nice fix indeed - my old evo came with a similar tilting thingy, straight off Asus
	Posted 06-11-2009 at 16:04 by xt0m

	Hey Stummer. Asus should have included an angled pin block to do the same job, hit them up and say its missing. Im in the same boat as Tom- my Evo came with one as standard
	Posted 06-12-2009 at 22:09 by K404

	Yeah, just found a pic of it.. http://benchmarkreviews.com/images/r..._ws_pro_gp.jpg
	Posted 06-12-2009 at 22:48 by xt0m

	That's a nice one...As far as I remember, the old X48 WS had an angled one...
	Posted 06-14-2009 at 12:20 by stummerwinter Updated 06-14-2009 at 12:23 by stummerwinter

	what is this
	Posted 06-09-2011 at 16:32 by giem125
